Для запросов на добавление функций или помощи в устранении неполадок, пожалуйста, откройте проблему на странице Github проекта.

Вы можете найти бинарный пакет для вашей платформы на официальной странице выпусков. В настоящее время доступны пакеты для Windows, Linux и macOS.

Официальный образ docker можно найти здесь: https://hub.docker.com/r/cybertecpostgresql/pg_timetable

Запустите pg_timetable в Docker:

docker run --rm \
cybertecpostgresql/pg_timetable:latest \
-h 10.0.0.3 -p 54321 -c worker001

Запустите pg_timetable в Docker с переменными окружения:

docker run --rm \
-e PGTT_PGHOST=10.0.0.3 \
-e PGTT_PGPORT=54321 \
cybertecpostgresql/pg_timetable:latest \
-c worker001

В настоящее время существует три различных типа команд:

Следующим строительным блоком является задача, которая просто представляет собой шаг в списке цепочки команд. Примером задач, объединенных в цепочку, может быть:

Как только задачи были упорядочены, их необходимо запланировать как цепочку. Для этого pg_timetable основывается на расширенной строке cron, при этом добавляя множество вариантов конфигурации.

SET TIME ZONE 'UTC';

-- Run VACUUM at 00:05 every day in August UTC
SELECT timetable.add_job('execute-func', '5 0 * 8 *', 'VACUUM');

В реальном мире обычно достаточно использовать простые задания. Под этим термином мы понимаем:

Для такой группы цепочек мы ввели специальную функцию timetable.add_job().

Этот пример демонстрирует, как создать базовую цепочку из одного шага с параметрами. Он использует CTE для непосредственного обновления таблиц схемы timetable.

SELECT timetable.add_job(
    job_name            => 'notify every minute',
    job_schedule        => '* * * * *',
    job_command         => 'SELECT pg_notify($1, $2)',
    job_parameters      => '[ "TT_CHANNEL", "Ahoj from SQL base task" ]' :: jsonb,
    job_kind            => 'SQL'::timetable.command_kind,
    job_client_name     => NULL,
    job_max_instances   => 1,
    job_live            => TRUE,
    job_self_destruct   => FALSE,
    job_ignore_errors   => TRUE
) as chain_id;

Этот пример демонстрирует, как создать продвинутую задачу отправки электронной почты. Он будет проверять, есть ли электронные письма для отправки, отправлять их и записывать статус выполнения команды. Вам не нужно ничего настраивать, каждый параметр может быть указан во время создания цепочки.

DO $$
    -- An example for using the SendMail task.
DECLARE
    v_mail_task_id bigint;
    v_log_task_id bigint;
    v_chain_id bigint;
BEGIN
    -- Get the chain id
    INSERT INTO timetable.chain (chain_name, max_instances, live) VALUES ('Send Mail', 1, TRUE)
    RETURNING chain_id INTO v_chain_id;

    -- Add SendMail task
    INSERT INTO timetable.task (chain_id, task_order, kind, command)
    SELECT v_chain_id, 10, 'BUILTIN', 'SendMail'
    RETURNING task_id INTO v_mail_task_id;

    -- Create the parameters for the SensMail task
        -- "username":       The username used for authenticating on the mail server
        -- "password":        The password used for authenticating on the mail server
        -- "serverhost":      The IP address or hostname of the mail server
        -- "serverport":      The port of the mail server
        -- "senderaddr":      The email that will appear as the sender
        -- "ccaddr":         String array of the recipients(Cc) email addresses
        -- "bccaddr":        String array of the recipients(Bcc) email addresses
        -- "toaddr":          String array of the recipients(To) email addresses
        -- "subject":        Subject of the email
        -- "attachment":      String array of the attachments (local file)
        -- "attachmentdata":  Pairs of name and base64-encoded content
        -- "msgbody":        The body of the email

    INSERT INTO timetable.parameter (task_id, order_id, value)
        VALUES (v_mail_task_id, 1, '{
                "username":     "user@example.com",
                "password":     "password",
                "serverhost":   "smtp.example.com",
                "serverport":   587,
                "senderaddr":   "user@example.com",
                "ccaddr":       ["recipient_cc@example.com"],
                "bccaddr":      ["recipient_bcc@example.com"],
                "toaddr":       ["recipient@example.com"],
                "subject":      "pg_timetable - No Reply",
                "attachment":   ["D:\\Go stuff\\Books\\Concurrency in Go.pdf","report.yaml"],
                "attachmentdata": [{"name": "File.txt", "base64data": "RmlsZSBDb250ZW50"}],
                "msgbody":      "<b>Hello User,</b> <p>I got some Go books for you enjoy</p> <i>pg_timetable</i>!",
                "contenttype":  "text/html; charset=UTF-8"
                }'::jsonb);

    -- Add Log task and make it the last task using `task_order` column (=30)
    INSERT INTO timetable.task (chain_id, task_order, kind, command)
    SELECT v_chain_id, 30, 'BUILTIN', 'Log'
    RETURNING task_id INTO v_log_task_id;

    -- Add housekeeping task, that will delete sent mail and update parameter for the previous logging task
    -- Since we're using special add_task() function we don't need to specify the `chain_id`.
    -- Function will take the same `chain_id` from the parent task, SendMail in this particular case
    PERFORM timetable.add_task(
        kind => 'SQL',
        parent_id => v_mail_task_id,
        command => format(
$query$WITH sent_mail(toaddr) AS (DELETE FROM timetable.parameter WHERE task_id = %s RETURNING value->>sername')
INSERT INTO timetable.parameter (task_id, order_id, value)
SELECT %s, 1, to_jsonb('Sent emails to: ' || string_agg(sent_mail.toaddr, ';'))
FROM sent_mail
ON CONFLICT (task_id, order_id) DO UPDATE SET value = EXCLUDED.value$query$,
                v_mail_task_id, v_log_task_id
            ),
        order_delta => 10
    );

-- In the end we should have something like this. Note, that even Log task was created earlier it will be executed ter
-- due to `task_order` column.

-- timetable=> SELECT task_id, chain_id, kind, left(command, 50) FROM timetable.task ORDER BY task_order;
--  task_id | chain_id | task_order |  kind   |                             left
-- ---------+----------+------------+---------+---------------------------------------------------------------
--       45 |       24 |         10 | BUILTIN | SendMail
--       47 |       24 |         20 | SQL     | WITH sent_mail(toaddr) AS (DELETE FROM timetable.p
--       46 |       24 |         30 | BUILTIN | Log
-- (3 rows)

END;
$$
LANGUAGE PLPGSQL;

Этот пример демонстрирует, как создать улучшенную трехшаговую цепочку с параметрами. Он использует оператор DO для непосредственного обновления таблиц схемы timetable.

-- Prepare the destination table 'location'
CREATE TABLE IF NOT EXISTS city(
    city text,
    lat numeric,
    lng numeric,
    country text,
    iso2 text,
    admin_name text,
    capital text,
    population bigint,
    population_proper bigint);

-- An enhanced example consisting of three tasks:
-- 1. Download text file from internet using BUILT-IN command
-- 2. Remove accents (diacritic signs) from letters using PROGRAM command (can be done with `unaccent` tension)
-- 3. Import text file as CSV file using BUILT-IN command (can be down with `psql -c /copy`)
DO $$
DECLARE
    v_head_id bigint;
    v_task_id bigint;
    v_chain_id bigint;
BEGIN
    -- Create the chain with default values executed every minute (NULL == '* * * * *' :: timetable.cron)
    INSERT INTO timetable.chain (chain_name, live)
    VALUES ('Download locations and aggregate', TRUE)
    RETURNING chain_id INTO v_chain_id;

    -- Step 1. Download file from the server
    -- Create the chain
    INSERT INTO timetable.task (chain_id, task_order, kind, command, ignore_error)
    VALUES (v_chain_id, 1, 'BUILTIN', 'Download', TRUE)
    RETURNING task_id INTO v_task_id;

    -- Create the parameters for the step 1:
    INSERT INTO timetable.parameter (task_id, order_id, value)
        VALUES (v_task_id, 1,
           '{
                "workersnum": 1,
                "fileurls": ["https://simplemaps.com/static/data/country-cities/mt/mt.csv"],
                "destpath": "."
            }'::jsonb);

    RAISE NOTICE 'Step 1 completed. Chain added with ID: %; DownloadFile task added with ID: %', v_chain_id, task_id;

    -- Step 2. Transform Unicode characters into ASCII
    -- Create the program task to call 'uconv' and name it 'unaccent'
    INSERT INTO timetable.task (chain_id, task_order, kind, command, ignore_error, task_name)
    VALUES (v_chain_id, 2, 'PROGRAM', 'uconv', TRUE, 'unaccent')
    RETURNING task_id INTO v_task_id;

    -- Create the parameters for the 'unaccent' task. Input and output files in this case
    -- Under Windows we should call PowerShell instead of "uconv" with command:
    -- Set-content "orte_ansi.txt" ((Get-content "orte.txt").Normalize("FormD") -replace '\p{M}', '')
    INSERT INTO timetable.parameter (task_id, order_id, value)
        VALUES (v_task_id, 1, '["-x", "Latin-ASCII", "-o", "mt_ansi.csv", "mt.csv"]'::jsonb);

    RAISE NOTICE 'Step 2 completed. Unacent task added with ID: %', v_task_id;

    -- Step 3. Import ASCII file to table using "CopyFromFile" built-in command
    INSERT INTO timetable.task (chain_id, task_order, kind, command)
        VALUES (v_chain_id, 3, 'BUILTIN', 'CopyFromFile')
    RETURNING task_id INTO v_task_id;

    -- Add the parameters for the download task. Execute client side COPY to 'location' from 'orte_ansi.txt'
    INSERT INTO timetable.parameter (task_id, order_id, value)
        VALUES (v_task_id, 1, '{"sql": "COPY city FROM STDIN (FORMAT csv, HEADER true)", "filename": "mt_ansi.v" }'::jsonb);

    RAISE NOTICE 'Step 3 completed. Import task added with ID: %', v_task_id;

    INSERT INTO timetable.task (chain_id, task_order, kind, command, ignore_error, task_name)
    VALUES (v_chain_id, 4, 'PROGRAM', 'bash', TRUE, 'remove .csv')
    RETURNING task_id INTO v_task_id;

    INSERT INTO timetable.parameter (task_id, order_id, value)
    VALUES (v_task_id, 1, '["-c", "rm *.csv"]'::jsonb);
END;
$$ LANGUAGE PLPGSQL;

Этот пример демонстрирует, как выполнять специальные задачи вне контекста транзакционной цепочки. Это полезно для специальных процедур и/или нетранзакционных операций, например, CREATE DATABASE, REINDEX, VACUUM, CREATE TABLESPACE и т.д.

-- An advanced example showing how to use atutonomous tasks.
-- This one-task chain will execute test_proc() procedure.
-- Since procedure will make two commits (after f1() and f2())
-- we cannot use it as a regular task, because all regular tasks
-- must be executed in the context of a single chain transaction.
-- Same rule applies for some other SQL commands,
-- e.g. CREATE DATABASE, REINDEX, VACUUM, CREATE TABLESPACE, etc.
CREATE OR REPLACE FUNCTION f (msg TEXT) RETURNS void AS $$
BEGIN
    RAISE notice '%', msg;
END;
$$ LANGUAGE PLPGSQL;

CREATE OR REPLACE PROCEDURE test_proc () AS $$
BEGIN
    PERFORM f('hey 1');
    COMMIT;
    PERFORM f('hey 2');
    COMMIT;
END;
$$
LANGUAGE PLPGSQL;

WITH
    cte_chain (v_chain_id) AS (
        INSERT INTO timetable.chain (chain_name, run_at, max_instances, live, self_destruct)
        VALUES (
            'call proc() every 10 sec', -- chain_name,
            '@every 10 seconds',        -- run_at,
            1,     -- max_instances,
            TRUE,  -- live,
            FALSE -- self_destruct
        ) RETURNING chain_id
    ),
    cte_task(v_task_id) AS (
        INSERT INTO timetable.task (chain_id, task_order, kind, command, ignore_error, autonomous)
        SELECT v_chain_id, 10, 'SQL', 'CALL test_proc()', TRUE, TRUE
        FROM cte_chain
        RETURNING task_id
    )
SELECT v_chain_id, v_task_id FROM cte_task, cte_chain;

Этот пример демонстрирует, как завершить работу планировщика, используя специальную встроенную задачу. Это может быть использовано для управления окнами обслуживания, для перезапуска планировщика в целях обновления или для остановки сессии перед удалением базы данных.

-- This one-task chain (aka job) will terminate pg_timetable session.
-- This is useful for maintaining purposes or before database being destroyed.
-- One should take care of restarting pg_timetable if needed.

SELECT timetable.add_job (
    job_name     => 'Shutdown pg_timetable session on schedule',
    job_schedule => '* * 1 * *',
    job_command  => 'Shutdown',
    job_kind     => 'BUILTIN'
);

Этот пример демонстрирует, как проверить код результата и вывод предыдущей задачи. Если последняя задача завершилась неудачно, это возможно только если ignore_error boolean = true установлено для этой задачи. В противном случае планировщик остановит цепочку. Этот пример показывает, как вычислить количество неудачных, успешных и общее количество выполненных задач. На основе этих значений мы можем вычислить коэффициент успеха.

WITH
    cte_chain (v_chain_id) AS ( -- let's create a new chain and add tasks to it later
        INSERT INTO timetable.chain (chain_name, run_at, max_instances, live)
        VALUES ('many tasks', '* * * * *', 1, true)
        RETURNING chain_id
    ),
    cte_tasks(v_task_id) AS ( -- now we'll add 500 tasks to the chain, some of them will fail
        INSERT INTO timetable.task (chain_id, task_order, kind, command, ignore_error)
        SELECT v_chain_id, g.s, 'SQL', 'SELECT 1.0 / round(random())::int4;', true
        FROM cte_chain, generate_series(1, 500) AS g(s)
        RETURNING task_id
    ),
    report_task(v_task_id) AS ( -- and the last reporting task will calculate the statistic
        INSERT INTO timetable.task (chain_id, task_order, kind, command)
        SELECT v_chain_id, 501, 'SQL', $CMD$DO
$$
DECLARE
    s TEXT;
BEGIN
    WITH report AS (
        SELECT
        count(*) FILTER (WHERE returncode = 0) AS success,
        count(*) FILTER (WHERE returncode != 0) AS fail,
        count(*) AS total
        FROM timetable.execution_log
        WHERE chain_id = current_setting('pg_timetable.current_chain_id')::bigint
          AND txid = txid_current()
    )
    SELECT 'Tasks executed:' || total ||
         '; succeeded: ' || success ||
         '; failed: ' || fail ||
         '; ratio: ' || 100.0*success/GREATEST(total,1)
    INTO s
    FROM report;
    RAISE NOTICE '%', s;
END;
$$
$CMD$
        FROM cte_chain
        RETURNING task_id
    )
SELECT v_chain_id FROM cte_chain

Если вы хотите быстро экспортировать задания, запланированные из pg_cron в pg_timetable, вы можете использовать этот фрагмент SQL:

SELECT timetable.add_job(
    job_name            => COALESCE(jobname, 'job: ' || command),
    job_schedule        => schedule,
    job_command         => command,
    job_kind            => 'SQL',
    job_live            => active
) FROM cron.job;

timetable.add_job(), однако, имеет некоторые ограничения. Прежде всего, функция пометит созданную задачу как автономную, указывая, что планировщик должен выполнять задачу вне цепочки транзакций. Это не ошибка, но множество автономных цепочек может привести к использованию дополнительных соединений.

Во-вторых, параметры подключения к базе данных теряются для исходных pg_cron задач, делая все задачи локальными. Чтобы экспортировать всю доступную информацию как можно точнее, используйте этот фрагмент SQL под ролью, в которой они были запланированы в pg_cron:

SET ROLE 'scheduler'; -- set the role used by pg_cron

WITH cron_chain AS (
    SELECT
        nextval('timetable.chain_chain_id_seq'::regclass) AS cron_id,
        jobname,
        schedule,
        active,
        command,
        CASE WHEN
            database != current_database()
            OR nodename != 'localhost'
            OR username != CURRENT_USER
            OR nodeport != inet_server_port()
        THEN
            format('host=%s port=%s dbname=%s user=%s', nodename, nodeport, database, username)
        END AS connstr
    FROM
        cron.job
),
cte_chain AS (
 INSERT INTO timetable.chain (chain_id, chain_name, run_at, live)
     SELECT
         cron_id, COALESCE(jobname, 'cronjob' || cron_id), schedule, active
     FROM
         cron_chain
),
cte_tasks AS (
 INSERT INTO timetable.task (chain_id, task_order, kind, command, database_connection)
     SELECT
         cron_id, 1, 'SQL', command, connstr
     FROM
         cron_chain
     RETURNING
         chain_id, task_id
)
SELECT * FROM cte_tasks;

Чтобы перенести задания из pgAgent, пожалуйста, используйте этот скрипт. pgAgent не имеет концепции задачи PROGRAM, поэтому для эмуляции шагов BATCH, pg_timetable будет выполнять их внутри оболочки. Вы можете изменить оболочку, отредактировав предложение CTE cte_shell.

CREATE OR REPLACE FUNCTION bool_array_to_cron(bool[], start_with int4 DEFAULT 0) RETURNS TEXT AS
$$
WITH u AS (
 SELECT unnest($1) e, generate_series($2, array_length($1, 1)-1+$2) AS i
)
SELECT COALESCE(string_agg(i::text, ','), '*') FROM u WHERE e
$$
LANGUAGE sql;


WITH
cte_shell(shell, cmd_param) AS (
 VALUES ('sh', '-c') -- set the shell you want to use for batch steps, e.g. "pwsh -c", "cmd /C"
),
pga_schedule AS (
 SELECT
     s.jscjobid,
     s.jscname,
     format('%s %s %s %s %s',
         bool_array_to_cron(s.jscminutes),
         bool_array_to_cron(s.jschours),
         bool_array_to_cron(s.jscmonthdays),
         bool_array_to_cron(s.jscmonths, 1),
         bool_array_to_cron(s.jscweekdays, 1)) AS schedule
 FROM
     pgagent.pga_schedule s
 WHERE s.jscenabled
         AND now() < COALESCE(s.jscend, 'infinity'::timestamptz)
         AND now() > s.jscstart
),
pga_chain AS (
    SELECT
        nextval('timetable.chain_chain_id_seq'::regclass) AS chain_id,
        jobid,
        format('%s @ %s', jobname, jscname) AS jobname,
        jobhostagent,
        jobenabled,
        schedule
    FROM
        pgagent.pga_job JOIN pga_schedule ON jobid = jscjobid
),
cte_chain AS (
 INSERT INTO timetable.chain (chain_id, chain_name, client_name, run_at, live)
     SELECT
         chain_id, jobname, jobhostagent, schedule, jobenabled
     FROM
         pga_chain
),
pga_step AS (
 SELECT
     c.chain_id,
     nextval('timetable.task_task_id_seq'::regclass) AS task_id,
     rank() OVER (ORDER BY jstname) AS jstorder,
     jstid,
     jstname,
     jstenabled,
     CASE jstkind WHEN 'b' THEN 'PROGRAM' ELSE 'SQL' END AS jstkind,
     jstcode,
     COALESCE(
         NULLIF(jstconnstr, ''),
         CASE
             WHEN jstdbname = current_database() THEN NULL
             WHEN jstdbname > '' THEN 'dbname=' || jstdbname
         END
     ) AS jstconnstr,
     jstonerror != 'f' AS jstignoreerror
 FROM
     pga_chain c JOIN pgagent.pga_jobstep js ON c.jobid = js.jstjobid
),
cte_tasks AS (
 INSERT INTO timetable.task(task_id, chain_id, task_name, task_order, kind, command, database_connection)
     SELECT
         task_id, chain_id, jstname, jstorder, jstkind::timetable.command_kind,
         CASE jstkind WHEN 'SQL' THEN jstcode ELSE sh.shell END,
         jstconnstr
     FROM
         pga_step, cte_shell sh
),
cte_parameters AS (
 INSERT INTO timetable.parameter (task_id, order_id, value)
     SELECT
         task_id, 1, jsonb_build_array(sh.cmd_param, s.jstcode)
     FROM
         pga_step s, cte_shell sh
     WHERE
         s.jstkind = 'PROGRAM'
)
SELECT * FROM pga_chain;

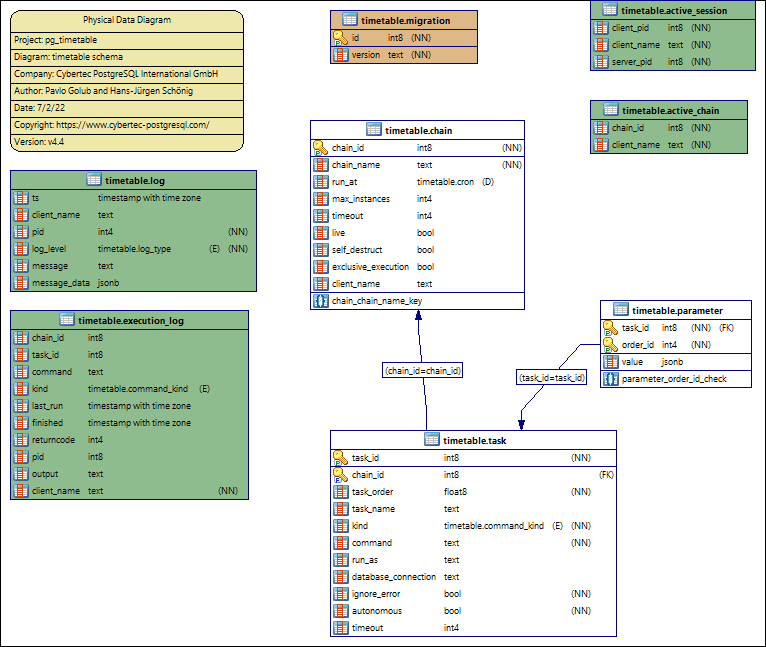

CREATE TABLE timetable.chain (
    chain_id            BIGSERIAL   PRIMARY KEY,
    chain_name          TEXT        NOT NULL UNIQUE,
    run_at              timetable.cron,
    max_instances       INTEGER,
    timeout             INTEGER     DEFAULT 0,
    live                BOOLEAN     DEFAULT FALSE,
    self_destruct       BOOLEAN     DEFAULT FALSE,
    exclusive_execution BOOLEAN     DEFAULT FALSE,
    client_name         TEXT,
    on_error            TEXT
);

COMMENT ON TABLE timetable.chain IS
    'Stores information about chains schedule';
COMMENT ON COLUMN timetable.chain.run_at IS
    'Extended CRON-style time notation the chain has to be run at';
COMMENT ON COLUMN timetable.chain.max_instances IS
    'Number of instances (clients) this chain can run in parallel';
COMMENT ON COLUMN timetable.chain.timeout IS
    'Abort any chain that takes more than the specified number of milliseconds';
COMMENT ON COLUMN timetable.chain.live IS
    'Indication that the chain is ready to run, set to FALSE to pause execution';
COMMENT ON COLUMN timetable.chain.self_destruct IS
    'Indication that this chain will delete itself after successful run';
COMMENT ON COLUMN timetable.chain.exclusive_execution IS
    'All parallel chains should be paused while executing this chain';
COMMENT ON COLUMN timetable.chain.client_name IS
    'Only client with this name is allowed to run this chain, set to NULL to allow any client';

CREATE TYPE timetable.command_kind AS ENUM ('SQL', 'PROGRAM', 'BUILTIN');

CREATE TABLE timetable.task (
    task_id             BIGSERIAL               PRIMARY KEY,
    chain_id            BIGINT                  REFERENCES timetable.chain(chain_id) ON UPDATE CASCADE ON DELETE SCADE,
    task_order          DOUBLE PRECISION        NOT NULL,
    task_name           TEXT,
    kind                timetable.command_kind  NOT NULL DEFAULT 'SQL',
    command             TEXT                    NOT NULL,
    run_as              TEXT,
    database_connection TEXT,
    ignore_error        BOOLEAN                 NOT NULL DEFAULT FALSE,
    autonomous          BOOLEAN                 NOT NULL DEFAULT FALSE,
    timeout             INTEGER                 DEFAULT 0
);

COMMENT ON TABLE timetable.task IS
    'Holds information about chain elements aka tasks';
COMMENT ON COLUMN timetable.task.chain_id IS
    'Link to the chain, if NULL task considered to be disabled';
COMMENT ON COLUMN timetable.task.task_order IS
    'Indicates the order of task within a chain';
COMMENT ON COLUMN timetable.task.run_as IS
    'Role name to run task as. Uses SET ROLE for SQL commands';
COMMENT ON COLUMN timetable.task.ignore_error IS
    'Indicates whether a next task in a chain can be executed regardless of the success of the current one';
COMMENT ON COLUMN timetable.task.kind IS
    'Indicates whether "command" is SQL, built-in function or an external program';
COMMENT ON COLUMN timetable.task.command IS
    'Contains either an SQL command, or command string to be executed';
COMMENT ON COLUMN timetable.task.timeout IS
    'Abort any task within a chain that takes more than the specified number of milliseconds';

-- parameter passing for a chain task
CREATE TABLE timetable.parameter(
    task_id     BIGINT  REFERENCES timetable.task(task_id)
                        ON UPDATE CASCADE ON DELETE CASCADE,
    order_id    INTEGER CHECK (order_id > 0),
    value       JSONB,
    PRIMARY KEY (task_id, order_id)
);

COMMENT ON TABLE timetable.parameter IS
    'Stores parameters passed as arguments to a chain task';

CREATE UNLOGGED TABLE timetable.active_session(
    client_pid  BIGINT  NOT NULL,
    server_pid  BIGINT  NOT NULL,
    client_name TEXT    NOT NULL,
    started_at  TIMESTAMPTZ DEFAULT now()
);

COMMENT ON TABLE timetable.active_session IS
    'Stores information about active sessions';

CREATE TYPE timetable.log_type AS ENUM ('DEBUG', 'NOTICE', 'INFO', 'ERROR', 'PANIC', 'USER');

CREATE OR REPLACE FUNCTION timetable.get_client_name(integer) RETURNS TEXT AS
$$
    SELECT client_name FROM timetable.active_session WHERE server_pid = $1 LIMIT 1
$$
LANGUAGE sql;

CREATE TABLE timetable.log
(
    ts              TIMESTAMPTZ         DEFAULT now(),
    pid             INTEGER             NOT NULL,
    log_level       timetable.log_type  NOT NULL,
    client_name     TEXT                DEFAULT timetable.get_client_name(pg_backend_pid()),
    message         TEXT,
    message_data    jsonb
);

COMMENT ON TABLE timetable.log IS
    'Stores log entries of active sessions';

CREATE TABLE timetable.execution_log (
    chain_id    BIGINT,
    task_id     BIGINT,
    txid        BIGINT NOT NULL,
    last_run    TIMESTAMPTZ DEFAULT now(),
    finished    TIMESTAMPTZ,
    pid         BIGINT,
    returncode  INTEGER,
    kind        timetable.command_kind,
    command     TEXT,
    output      TEXT,
    client_name TEXT        NOT NULL
);

COMMENT ON TABLE timetable.execution_log IS
    'Stores log entries of executed tasks and chains';

CREATE UNLOGGED TABLE timetable.active_chain(
    chain_id    BIGINT  NOT NULL,
    client_name TEXT    NOT NULL,
    started_at  TIMESTAMPTZ DEFAULT now()
);

COMMENT ON TABLE timetable.active_chain IS
    'Stores information about active chains within session';

CREATE OR REPLACE FUNCTION timetable.try_lock_client_name(worker_pid BIGINT, worker_name TEXT)
RETURNS bool AS
$CODE$
BEGIN
    IF pg_is_in_recovery() THEN
        RAISE NOTICE 'Cannot obtain lock on a replica. Please, use the primary node';
        RETURN FALSE;
    END IF;
    -- remove disconnected sessions
    DELETE
        FROM timetable.active_session
        WHERE server_pid NOT IN (
            SELECT pid
            FROM pg_catalog.pg_stat_activity
            WHERE application_name = 'pg_timetable'
        );
    DELETE
        FROM timetable.active_chain
        WHERE client_name NOT IN (
            SELECT client_name FROM timetable.active_session
        );
    -- check if there any active sessions with the client name but different client pid
    PERFORM 1
        FROM timetable.active_session s
        WHERE
            s.client_pid <> worker_pid
            AND s.client_name = worker_name
        LIMIT 1;
    IF FOUND THEN
        RAISE NOTICE 'Another client is already connected to server with name: %', worker_name;
        RETURN FALSE;
    END IF;
    -- insert current session information
    INSERT INTO timetable.active_session(client_pid, client_name, server_pid) VALUES (worker_pid, worker_name, backend_pid());
    RETURN TRUE;
END;
$CODE$
STRICT
LANGUAGE plpgsql;

-- add_task() will add a task to the same chain as the task with `parent_id`
CREATE OR REPLACE FUNCTION timetable.add_task(
    IN kind timetable.command_kind,
    IN command TEXT,
    IN parent_id BIGINT,
    IN order_delta DOUBLE PRECISION DEFAULT 10
) RETURNS BIGINT AS $$
    INSERT INTO timetable.task (chain_id, task_order, kind, command)
    SELECT chain_id, task_order + $4, $1, $2 FROM timetable.task WHERE task_id = $3
    RETURNING task_id
$$ LANGUAGE SQL;

COMMENT ON FUNCTION timetable.add_task IS 'Add a task to the same chain as the task with parent_id';

-- add_job() will add one-task chain to the system
CREATE OR REPLACE FUNCTION timetable.add_job(
    job_name            TEXT,
    job_schedule        timetable.cron,
    job_command         TEXT,
    job_parameters      JSONB DEFAULT NULL,
    job_kind            timetable.command_kind DEFAULT 'SQL'::timetable.command_kind,
    job_client_name     TEXT DEFAULT NULL,
    job_max_instances   INTEGER DEFAULT NULL,
    job_live            BOOLEAN DEFAULT TRUE,
    job_self_destruct   BOOLEAN DEFAULT FALSE,
    job_ignore_errors   BOOLEAN DEFAULT TRUE,
    job_exclusive       BOOLEAN DEFAULT FALSE,
    job_on_error        TEXT DEFAULT NULL
) RETURNS BIGINT AS $$
    WITH
        cte_chain (v_chain_id) AS (
            INSERT INTO timetable.chain (chain_name, run_at, max_instances, live, self_destruct, client_name, clusive_execution, on_error)
            VALUES (job_name, job_schedule,job_max_instances, job_live, job_self_destruct, job_client_name, b_exclusive, job_on_error)
            RETURNING chain_id
        ),
        cte_task(v_task_id) AS (
            INSERT INTO timetable.task (chain_id, task_order, kind, command, ignore_error, autonomous)
            SELECT v_chain_id, 10, job_kind, job_command, job_ignore_errors, TRUE
            FROM cte_chain
            RETURNING task_id
        ),
        cte_param AS (
            INSERT INTO timetable.parameter (task_id, order_id, value)
            SELECT v_task_id, 1, job_parameters FROM cte_task, cte_chain
        )
        SELECT v_chain_id FROM cte_chain
$$ LANGUAGE SQL;

COMMENT ON FUNCTION timetable.add_job IS 'Add one-task chain (aka job) to the system';

-- notify_chain_start() will send notification to the worker to start the chain
CREATE OR REPLACE FUNCTION timetable.notify_chain_start(
    chain_id    BIGINT,
    worker_name TEXT,
    start_delay INTERVAL DEFAULT NULL
) RETURNS void AS $$
    SELECT pg_notify(
        worker_name,
        format('{"ConfigID": %s, "Command": "START", "Ts": %s, "Delay": %s}',
            chain_id,
            EXTRACT(epoch FROM clock_timestamp())::bigint,
            COALESCE(EXTRACT(epoch FROM start_delay)::bigint, 0)
        )
    )
$$ LANGUAGE SQL;

COMMENT ON FUNCTION timetable.notify_chain_start IS 'Send notification to the worker to start the chain';

-- notify_chain_stop() will send notification to the worker to stop the chain
CREATE OR REPLACE FUNCTION timetable.notify_chain_stop(
    chain_id BIGINT,
    worker_name TEXT
) RETURNS void AS  $$
    SELECT pg_notify(
        worker_name,
        format('{"ConfigID": %s, "Command": "STOP", "Ts": %s}',
            chain_id,
            EXTRACT(epoch FROM clock_timestamp())::bigint)
        )
$$ LANGUAGE SQL;

COMMENT ON FUNCTION timetable.notify_chain_stop IS 'Send notification to the worker to stop the chain';

-- move_task_up() will switch the order of the task execution with a previous task within the chain
CREATE OR REPLACE FUNCTION timetable.move_task_up(IN task_id BIGINT) RETURNS boolean AS $$
    WITH current_task (ct_chain_id, ct_id, ct_order) AS (
        SELECT chain_id, task_id, task_order FROM timetable.task WHERE task_id = $1
    ),
    tasks(t_id, t_new_order) AS (
        SELECT task_id, COALESCE(LAG(task_order) OVER w, LEAD(task_order) OVER w)
        FROM timetable.task t, current_task ct
        WHERE chain_id = ct_chain_id AND (task_order < ct_order OR task_id = ct_id)
        WINDOW w AS (PARTITION BY chain_id ORDER BY ABS(task_order - ct_order))
        LIMIT 2
    ),
    upd AS (
        UPDATE timetable.task t SET task_order = t_new_order
        FROM tasks WHERE tasks.t_id = t.task_id AND tasks.t_new_order IS NOT NULL
        RETURNING true
    )
    SELECT COUNT(*) > 0 FROM upd
$$ LANGUAGE SQL;

COMMENT ON FUNCTION timetable.move_task_up IS 'Switch the order of the task execution with a previous task within  chain';

-- move_task_down() will switch the order of the task execution with a following task within the chain
CREATE OR REPLACE FUNCTION timetable.move_task_down(IN task_id BIGINT) RETURNS boolean AS $$
    WITH current_task (ct_chain_id, ct_id, ct_order) AS (
        SELECT chain_id, task_id, task_order FROM timetable.task WHERE task_id = $1
    ),
    tasks(t_id, t_new_order) AS (
        SELECT task_id, COALESCE(LAG(task_order) OVER w, LEAD(task_order) OVER w)
        FROM timetable.task t, current_task ct
        WHERE chain_id = ct_chain_id AND (task_order > ct_order OR task_id = ct_id)
        WINDOW w AS (PARTITION BY chain_id ORDER BY ABS(task_order - ct_order))
        LIMIT 2
    ),
    upd AS (
        UPDATE timetable.task t SET task_order = t_new_order
        FROM tasks WHERE tasks.t_id = t.task_id AND tasks.t_new_order IS NOT NULL
        RETURNING true
    )
    SELECT COUNT(*) > 0 FROM upd
$$ LANGUAGE SQL;

COMMENT ON FUNCTION timetable.move_task_down IS 'Switch the order of the task execution with a following task hin the chain';

-- delete_job() will delete the chain and its tasks from the system
CREATE OR REPLACE FUNCTION timetable.delete_job(IN job_name TEXT) RETURNS boolean AS $$
    WITH del_chain AS (DELETE FROM timetable.chain WHERE chain.chain_name = $1 RETURNING chain_id)
    SELECT EXISTS(SELECT 1 FROM del_chain)
$$ LANGUAGE SQL;

COMMENT ON FUNCTION timetable.delete_job IS 'Delete the chain and its tasks from the system';

-- delete_task() will delete the task from a chain
CREATE OR REPLACE FUNCTION timetable.delete_task(IN task_id BIGINT) RETURNS boolean AS $$
    WITH del_task AS (DELETE FROM timetable.task WHERE task_id = $1 RETURNING task_id)
    SELECT EXISTS(SELECT 1 FROM del_task)
$$ LANGUAGE SQL;

COMMENT ON FUNCTION timetable.delete_task IS 'Delete the task from a chain';

CREATE OR REPLACE FUNCTION timetable.cron_split_to_arrays(
    cron text,
    OUT mins integer[],
    OUT hours integer[],
    OUT days integer[],
    OUT months integer[],
    OUT dow integer[]
) RETURNS record AS $$
DECLARE
    a_element text[];
    i_index integer;
    a_tmp text[];
    tmp_item text;
    a_range int[];
    a_split text[];
    a_res integer[];
    max_val integer;
    min_val integer;
    dimensions constant text[] = '{"minutes", "hours", "days", "months", "days of week"}';
    allowed_ranges constant integer[][] = '{{0,59},{0,23},{1,31},{1,12},{0,7}}';
BEGIN
    a_element := regexp_split_to_array(cron, '\s+');
    FOR i_index IN 1..5 LOOP
        a_res := NULL;
        a_tmp := string_to_array(a_element[i_index],',');
        FOREACH  tmp_item IN ARRAY a_tmp LOOP
            IF tmp_item ~ '^[0-9]+$' THEN -- normal integer
                a_res := array_append(a_res, tmp_item::int);
            ELSIF tmp_item ~ '^[*]+$' THEN -- '*' any value
                a_range := array(select generate_series(allowed_ranges[i_index][1], allowed_ranges[i_index][2]));
                a_res := array_cat(a_res, a_range);
            ELSIF tmp_item ~ '^[0-9]+[-][0-9]+$' THEN -- '-' range of values
                a_range := regexp_split_to_array(tmp_item, '-');
                a_range := array(select generate_series(a_range[1], a_range[2]));
                a_res := array_cat(a_res, a_range);
            ELSIF tmp_item ~ '^[0-9]+[\/][0-9]+$' THEN -- '/' step values
                a_range := regexp_split_to_array(tmp_item, '/');
                a_range := array(select generate_series(a_range[1], allowed_ranges[i_index][2], a_range[2]));
                a_res := array_cat(a_res, a_range);
            ELSIF tmp_item ~ '^[0-9-]+[\/][0-9]+$' THEN -- '-' range of values and '/' step values
                a_split := regexp_split_to_array(tmp_item, '/');
                a_range := regexp_split_to_array(a_split[1], '-');
                a_range := array(select generate_series(a_range[1], a_range[2], a_split[2]::int));
                a_res := array_cat(a_res, a_range);
            ELSIF tmp_item ~ '^[*]+[\/][0-9]+$' THEN -- '*' any value and '/' step values
                a_split := regexp_split_to_array(tmp_item, '/');
                a_range := array(select generate_series(allowed_ranges[i_index][1], allowed_ranges[i_index][2], a_split[2]::int));
                a_res := array_cat(a_res, a_range);
            ELSE
                RAISE EXCEPTION 'Value ("%") not recognized', a_element[i_index]
                    USING HINT = 'fields separated by space or tab.'+
                       'Values allowed: numbers (value list with ","), '+
                    'any value with "*", range of value with "-" and step values with "/"!';
            END IF;
        END LOOP;
        SELECT
           ARRAY_AGG(x.val), MIN(x.val), MAX(x.val) INTO a_res, min_val, max_val
        FROM (
            SELECT DISTINCT UNNEST(a_res) AS val ORDER BY val) AS x;
        IF max_val > allowed_ranges[i_index][2] OR min_val < allowed_ranges[i_index][1] OR a_res IS NULL THEN
            RAISE EXCEPTION '% is out of range % for %', tmp_item, allowed_ranges[i_index:i_index][:], dimensions[i_index];
        END IF;
        CASE i_index
            WHEN 1 THEN mins := a_res;
            WHEN 2 THEN hours := a_res;
            WHEN 3 THEN days := a_res;
            WHEN 4 THEN months := a_res;
        ELSE
            dow := a_res;
        END CASE;
    END LOOP;
    RETURN;
END;
$$ LANGUAGE PLPGSQL STRICT;

CREATE OR REPLACE FUNCTION timetable.cron_months(
    from_ts timestamptz,
    allowed_months int[]
) RETURNS SETOF timestamptz AS $$
    WITH
    am(am) AS (SELECT UNNEST(allowed_months)),
    genm(ts) AS ( --generated months
        SELECT date_trunc('month', ts)
        FROM pg_catalog.generate_series(from_ts, from_ts + INTERVAL '1 year', INTERVAL '1 month') g(ts)
    )
    SELECT ts FROM genm JOIN am ON date_part('month', genm.ts) = am.am
$$ LANGUAGE SQL STRICT;

CREATE OR REPLACE FUNCTION timetable.cron_days(
    from_ts timestamptz,
    allowed_months int[],
    allowed_days int[],
    allowed_week_days int[]
) RETURNS SETOF timestamptz AS $$
    WITH
    ad(ad) AS (SELECT UNNEST(allowed_days)),
    am(am) AS (SELECT * FROM timetable.cron_months(from_ts, allowed_months)),
    gend(ts) AS ( --generated days
        SELECT date_trunc('day', ts)
        FROM am,
            pg_catalog.generate_series(am.am, am.am + INTERVAL '1 month'
                - INTERVAL '1 day',  -- don't include the same day of the next month
                INTERVAL '1 day') g(ts)
    )
    SELECT ts
    FROM gend JOIN ad ON date_part('day', gend.ts) = ad.ad
    WHERE extract(dow from ts)=ANY(allowed_week_days)
$$ LANGUAGE SQL STRICT;

CREATE OR REPLACE FUNCTION timetable.cron_times(
    allowed_hours int[],
    allowed_minutes int[]
) RETURNS SETOF time AS $$
    WITH
    ah(ah) AS (SELECT UNNEST(allowed_hours)),
    am(am) AS (SELECT UNNEST(allowed_minutes))
    SELECT make_time(ah.ah, am.am, 0) FROM ah CROSS JOIN am
$$ LANGUAGE SQL STRICT;


CREATE OR REPLACE FUNCTION timetable.cron_runs(
    from_ts timestamp with time zone,
    cron text
) RETURNS SETOF timestamptz AS $$
    SELECT cd + ct
    FROM
        timetable.cron_split_to_arrays(cron) a,
        timetable.cron_times(a.hours, a.mins) ct CROSS JOIN
        timetable.cron_days(from_ts, a.months, a.days, a.dow) cd
    WHERE cd + ct > from_ts
    ORDER BY 1 ASC;
$$ LANGUAGE SQL STRICT;

CREATE DOMAIN timetable.cron AS TEXT CHECK(
    VALUE = '@reboot'
    OR substr(VALUE, 1, 6) IN ('@every', '@after')
       AND (substr(VALUE, 7) :: INTERVAL) IS NOT NULL
    OR VALUE ~ '^(((\d+,)+\d+|(\d+(\/|-)\d+)|(\*(\/|-)\d+)|\d+|\*) +){4}(((\d+,)+\d+|(\d+(\/|-)\d+)|(\*(\/|-)\d+)|\d+|\*) ?)$'
       AND timetable.cron_split_to_arrays(VALUE) IS NOT NULL
);

COMMENT ON DOMAIN timetable.cron IS 'Extended CRON-style notation with support of interval values';

-- is_cron_in_time returns TRUE if timestamp is listed in cron expression
CREATE OR REPLACE FUNCTION timetable.is_cron_in_time(
    run_at timetable.cron,
    ts timestamptz
) RETURNS BOOLEAN AS $$
    SELECT
    CASE WHEN run_at IS NULL THEN
        TRUE
    ELSE
        date_part('month', ts) = ANY(a.months)
        AND (date_part('dow', ts) = ANY(a.dow) OR date_part('isodow', ts) = ANY(a.dow))
        AND date_part('day', ts) = ANY(a.days)
        AND date_part('hour', ts) = ANY(a.hours)
        AND date_part('minute', ts) = ANY(a.mins)
    END
    FROM
        timetable.cron_split_to_arrays(run_at) a
$$ LANGUAGE SQL;

CREATE OR REPLACE FUNCTION timetable.next_run(cron timetable.cron) RETURNS timestamptz AS $$
    SELECT * FROM timetable.cron_runs(now(), cron) LIMIT 1
$$ LANGUAGE SQL STRICT;
